How to Use an Electric Pallet Jack: The Ultimate Step-by-Step Safety Guide

Introduction

Learning how to use an electric pallet jack is a foundational skill that transforms grueling manual labor into a highly efficient, streamlined process.

Electric pallet jacks have big advantages. They are faster and can carry heavier loads than manual ones. Some can carry up to 8,000 pounds. They also reduce strain on your body, so you’re less likely to hurt yourself. Without them, you’d be dragging heavy pallets across concrete floors all day.

But with that power comes risk. A motorized pallet jack moves quickly and has a lot of force. If you're not careful, accidents can happen. People can get their feet crushed, or the machine can tip over. This guide will show you how to safely use an electric pallet jack and avoid common mistakes.

What Is an Electric Pallet Jack? (Quick Overview)

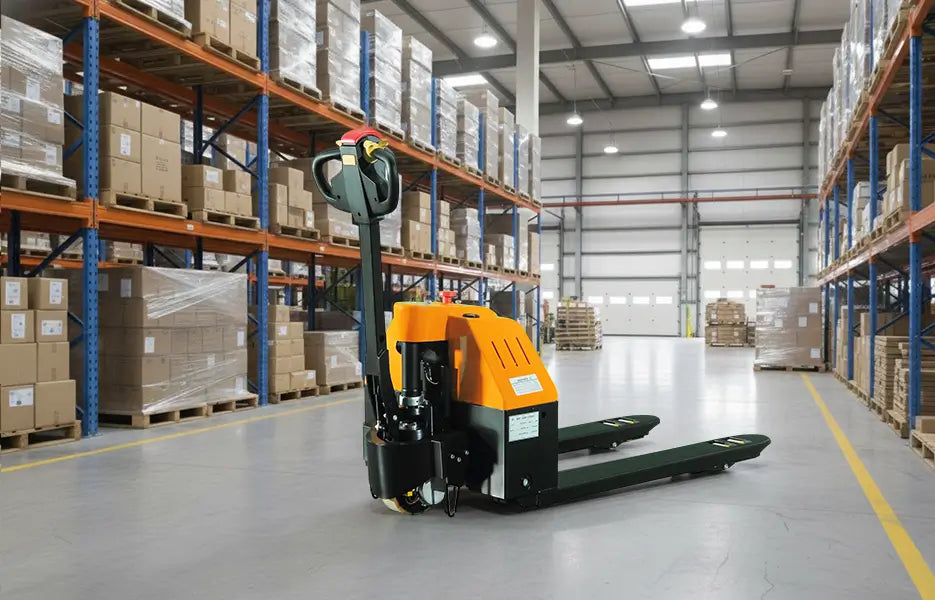

An electric pallet jack is a motorized machine designed for moving heavy pallets. Unlike forklifts, it doesn’t lift items high. It works at ground level and can move pallets across the floor.

Under OSHA rules, the electric pallet jack is classified as a Class III Powered Industrial Truck. This means it’s legally treated like a forklift. So, operators must be trained and certified before using it. The control handle (called a tiller head) uses buttons and grips that let you control the speed and direction of the machine.

Main Types of Electric Pallet Jacks

Before using the machine, you need to know what type of pallet jack you're operating. There are three main types: Walkie, End-Rider, and Center Rider. Each one is designed differently.

1.Electric Walkie Pallet Jack: The operator walks behind or beside the jack. It can lift 3,000 to 4,500 pounds. It’s great for tight spaces and short distances. It’s slower but precise.

2.Electric End-Rider:The operator stands on a platform at the back. It can lift up to 8,000 pounds. It's perfect for long-distance travel and dock loading.

3.Center Rider:The operator stands between the forks and motor. It can also lift up to 8,000 pounds. It’s faster and offers better protection for the operator.

Critical Safety Warnings Before You Begin

You need to take safety seriously when using a pallet jack. Assuming it's a simple machine can lead to accidents. Never operate one without proper training.

1. OSHA Classification and Legal Requirements: You must be at least 18 years old and certified to operate an electric pallet jack. Employers are required to train operators and evaluate their performance every three years.
2. Personal Protective Equipment (PPE): Before using the machine, wear steel-toe boots, a high-visibility vest, and heavy-duty gloves. These protect you from potential injuries.

Pre-Use Inspection Checklist

Each day, before using the pallet jack, you must do an inspection. This is required by law. Check the following:

• General Condition: Look for cracks, dents, or missing safety labels.
• Load Capacity: Make sure the machine’s data plate is legible and indicates the maximum safe load.
• Wheels and Tires: Check for damage or debris that could affect traction.
• Forks: Ensure the forks are straight and not bent.
• Battery and Cables: Check that the battery is secure and not leaking. Ensure the cables are intact.
• Braking System: Test the brakes to make sure they work properly.
• Horn: Ensure the horn is loud enough for safety.
• Emergency Belly Switch: Test the switch to ensure it works in emergencies.

If the pallet jack fails any of these checks, do not use it.

Understanding the Electric Pallet Jack Controls (Tiller Head Breakdown)

The tiller head is where you control the machine. It may look complex, but it’s simple once you understand it. It includes:



• Directional Twist Grips: These control the direction and speed. Turn the grip forward to move forward, and backward to reverse.
• Lift and Lower Buttons:These buttons raise or lower the forks.
• Horn Button: This alerts others when you need to be heard.
• Emergency Belly Switch: This is for emergencies only. If you get stuck against something,it will reverse the machine's direction.

Step-by-Step: How to Safely Operate an Electric Pallet Jack

Now that you know the basics, here’s how to safely operate the pallet jack:

• Power On and Authentication: Turn on the machine by flipping the key or entering a PIN code. Make sure the battery is charged.
• Disengage the Dead-Man Brake: Grasp the tiller handle and tilt it to release the brake. The machine won't move if the brake is still on.
• Approach the Pallet: Use the twist grips to move toward the pallet. Always approach the pallet straight, not at an angle.
• Insert the Forks: Lower the forks and drive forward until they slide fully into the pallet.
• >Lift the Load: Use the lift button to raise the pallet. Only lift it enough to clear the floor.
• Check Your Path: Always look around before moving. Check for pedestrians or obstacles.
• Start Moving: Gently push the twist grips to start moving. Avoid fast starts that could cause instability.
• Navigate Turns: Slow down before turning. Take wide turns and be cautious.
• Use Regenerative Braking: To slow down, release the twist grips. For faster stopping, use regenerative braking by turning the grips in the opposite direction.
• Lower the Load: When you reach the destination, stop the machine and press the lower button until the load is on the ground.
• Extract the Forks: After unloading, back up the machine to clear the forks from the pallet.
• Park and Power Off: Always park the machine in a designated area. Lower the forks and turn off the key.

KAIXUN Electric Pallet Jacks deliver powerful, full-electric drive and lift with a robust 750W motor, effortlessly handling loads up to 3300–4400 lbs and eliminating manual pulling for significantly reduced operator fatigue and boosted warehouse productivity.

Safe Traveling and Load Handling Best Practices

For safe operation, follow these tips:

• Operator Positioning: When using a walkie-style jack, always stand to the side of the handle. This keeps you safe if the machine suddenly stops.
• Pedestrian Safety: Always yield to pedestrians. Use the horn at blind intersections.
• Ramp Safety: When driving up a ramp, the load should always face uphill. If going down, drive in reverse with the load facing uphill.

Common Mistakes Beginners Make (And How to Avoid Them)

Here are some common mistakes and how to avoid them:

• Foot Positioning: Don’t let your feet near the machine. Always wear steel-toe boots.
• Misusing the Belly Switch: Use the twist grips for normal direction changes. Only use the belly switch in emergencies.
• Riding Walkie-Only Equipment: Never stand or ride on the pallet jack unless it’s designed for that.
• Traveling with Elevated Forks: Keep the forks as low as possible when moving.
• Jerky Throttle Application: Always accelerate smoothly to keep the load stable.

Battery Charging and Basic Maintenance Tips

A well-maintained battery ensures the pallet jack works efficiently. There are two types of batteries:

• Lead-Acid Batteries: These need longer charging times (8–12 hours) and regular maintenance.
• Lithium-Ion Batteries:These charge quickly (1–2 hours) and require no maintenance.Always inspect the charging cables for any damage before plugging them in.

When You Should NEVER Use an Electric Pallet Jack

Never use the pallet jack if:

• Your certification is expired.
• The machine hasn’t passed the inspection.
• The floor is wet or slippery.
• The load exceeds the machine's capacity.

Conclusion

Learning how to use an electric pallet jack safely is essential. It involves understanding the controls, conducting pre-shift inspections, and following safety protocols. By using the machine properly, you reduce the risk of accidents and injuries. Always wear the right safety gear, inspect the machine every day, and stay alert. With practice, you'll become a skilled and safe operator.
