SKU: KX-CPD30

Customizable Electric Counterbalance Forklift, 6600 lbs Capacity - KX-CPD30

Features:

⚡ Max Load Capacity: 6600 lbs
⚡ Full AC control system with Megmeet L6-4845 controller
⚡ 11kW drive motor + 12kW lifting motor
⚡ 48V 600Ah Torch battery with 48V 80A charger
⚡ Mast Options: 2-stage (6.5–11.5 ft) / 3-stage (13–20 ft)
⚡ Handling Options: Optional side shift attachment

⚙️ Customization:

Mast Options
• 2-stage mast: 6.5 / 8 / 10 / 11.5 ft
• 3-stage mast: 13 / 15 / 16.5 / 18 / 20 ft
Side Shift: Optional side shift carriage
Custom Attachments: Additional attachments available

Load
Lift
Configuration
Add to Quote

Custom Warehouse Electric Forklift with Flexible Configurations

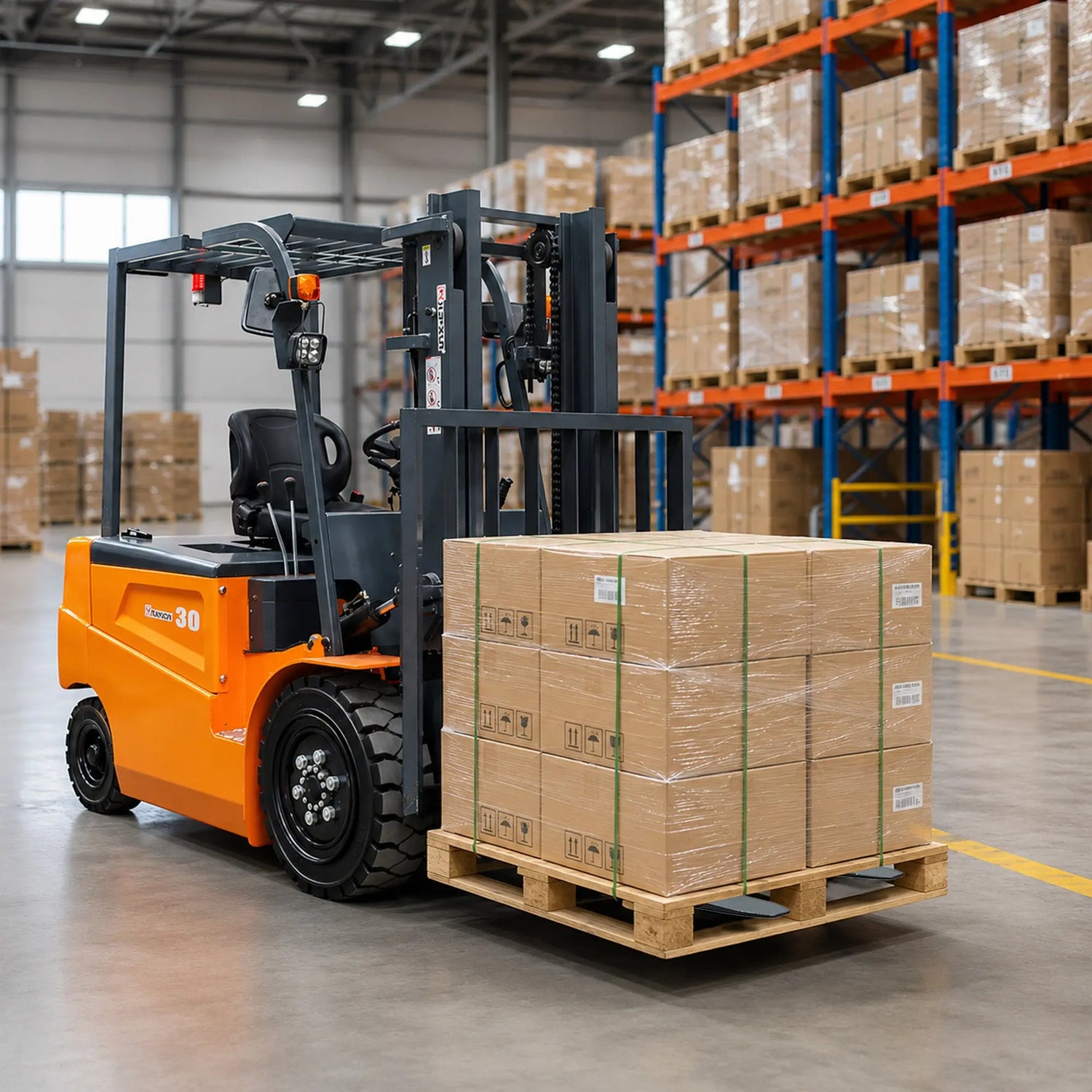

The KAIXUN CPD30 Electric Forklift features a 6,600 lbs (3,000 kg) load capacity and a full AC control system for reliable performance in warehouse and industrial applications. It is equipped with a 11kW AC drive motor, 12kW AC lifting motor, and hydraulic power steering for smooth handling and precise control. Powered by a 48V 600Ah Torch lead-acid traction battery with a 48V 80A high-frequency charger, the CPD30 supports optional side shift attachments and flexible mast configurations for different material handling needs.

Lifting height: 6.5–20 ft (2-stage mast: 6.5–11.5 ft; 3-stage mast: 13–20 ft)



Customizable Options
  • Mast Height Options
    2-stage mast: 6.5–11.5 ft (2–3.5 m)
    3-stage mast: 13–20 ft (4–6 m)
  • Side Shift Attachment
    Optional side shift carriage for more precise load positioning and improved handling efficiency
  • Custom Attachments
    Additional forklift attachments available to match specific application requirements

Specifications
General
Rated load lbs 5500 N.W. lbs 10,073(9.8ft mast)
Dimensions
Overall length in 142 Overall width in 44.5
Overall height in 85.2 Ground Clearance in 5.1
Turning radius in 82.3 Wheel base in 59.9
Forks & Mast
Lifting height ft 6.5/8.2/9.8/11.5/13.1/14.8/16.4/18.0/19.7 Fork Length in 48
Maximum Lateral Shift (Optional) in 4 Mast Tilt Angle (F/R) degree 6°/10°
Power System
Battery V/Ah 48/600 Driving Motor kW 11
Lifting Motor kW 12
Speed
Lifting speed (Full-load) in/s 13.4 Driving speed (Full-load) mph 7.5
Climbing Gradient % 15
General
Rated load 6600 lbs
N.W. 10073lbs
Dimensions
Overall length 142 in
Overall width 44.5in
Overall height 85.2in
Ground Clearance 5.1in
Turning radius 82.3 in
Wheel base 59.9in
Forks & Mast
Lifting height 6.5/8.2/9.8/11.5/13.1/14.8/16.4/18.0/19.7in
Fork Length 48 in
Maximum Lateral Shift (Optional) 4 in
Mast Tilt Angle (F/R) 6°/10°
Motor
Lift motor 11KW
Drive motor 12KW
Power System
Battery 48/600 V/Ah
Speed
Lifting speed (Full-load) 13.4in/s
Driving speed (Full-load) 7.5mph
Climbing Gradient 15%
