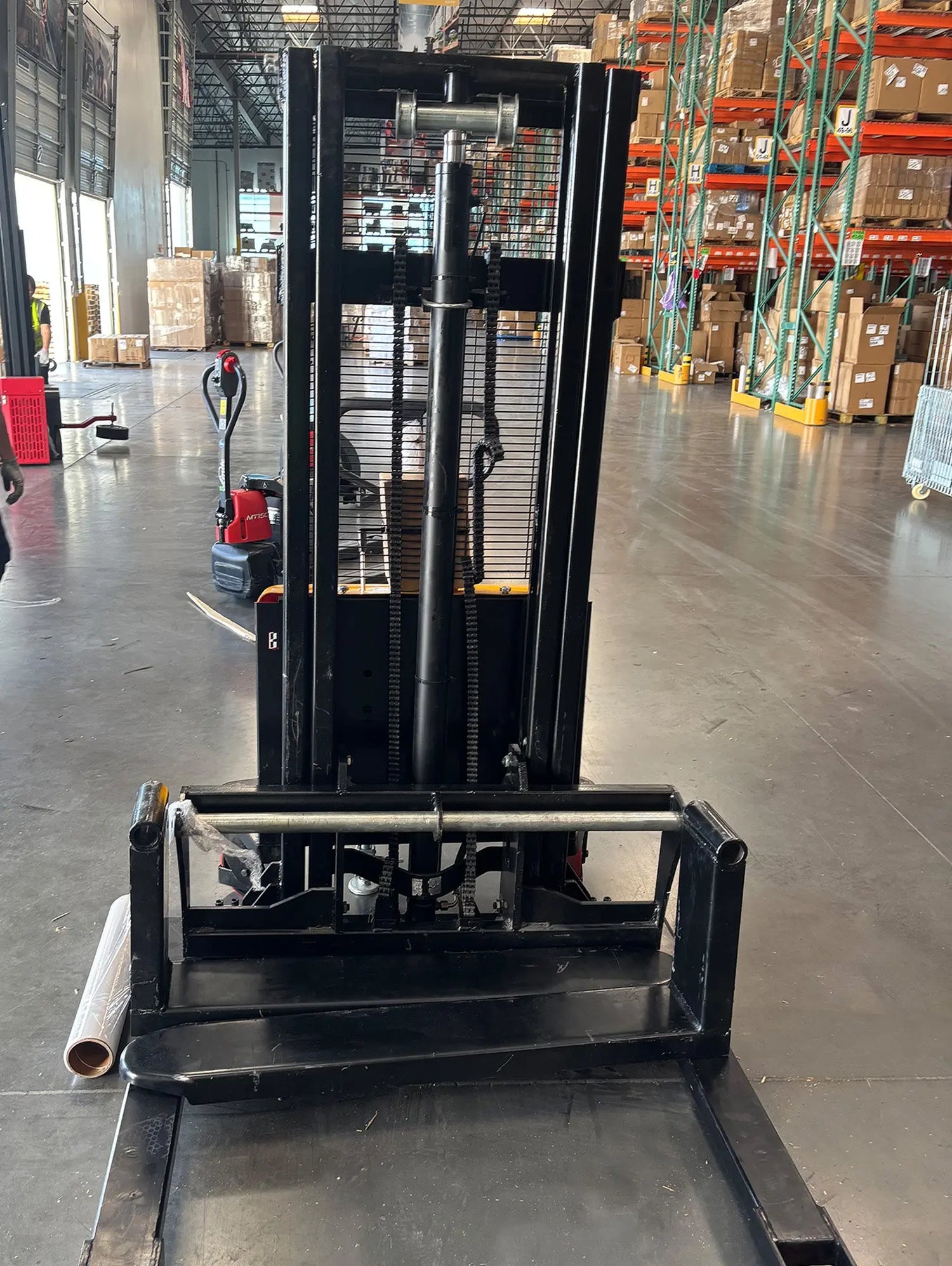

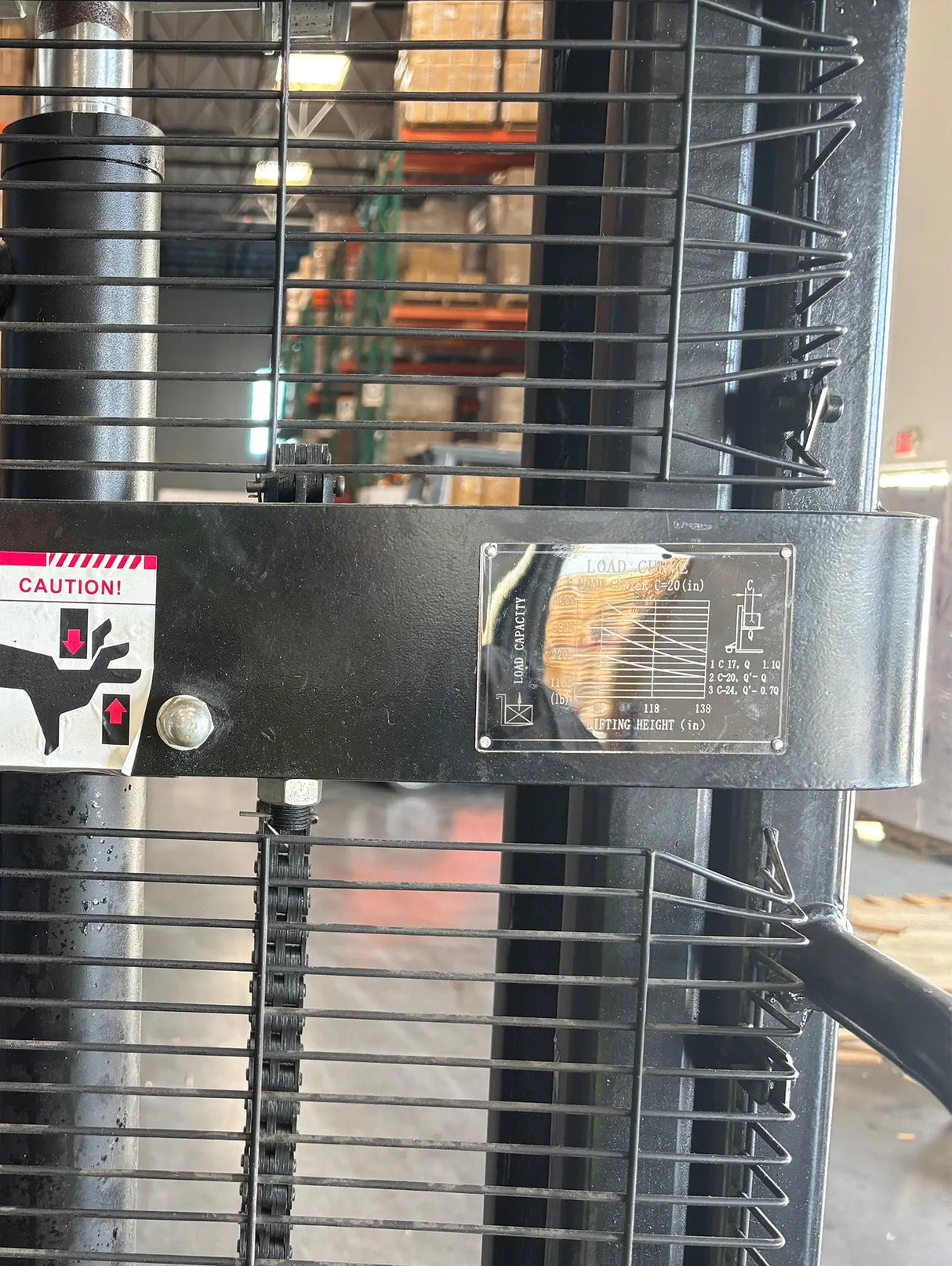

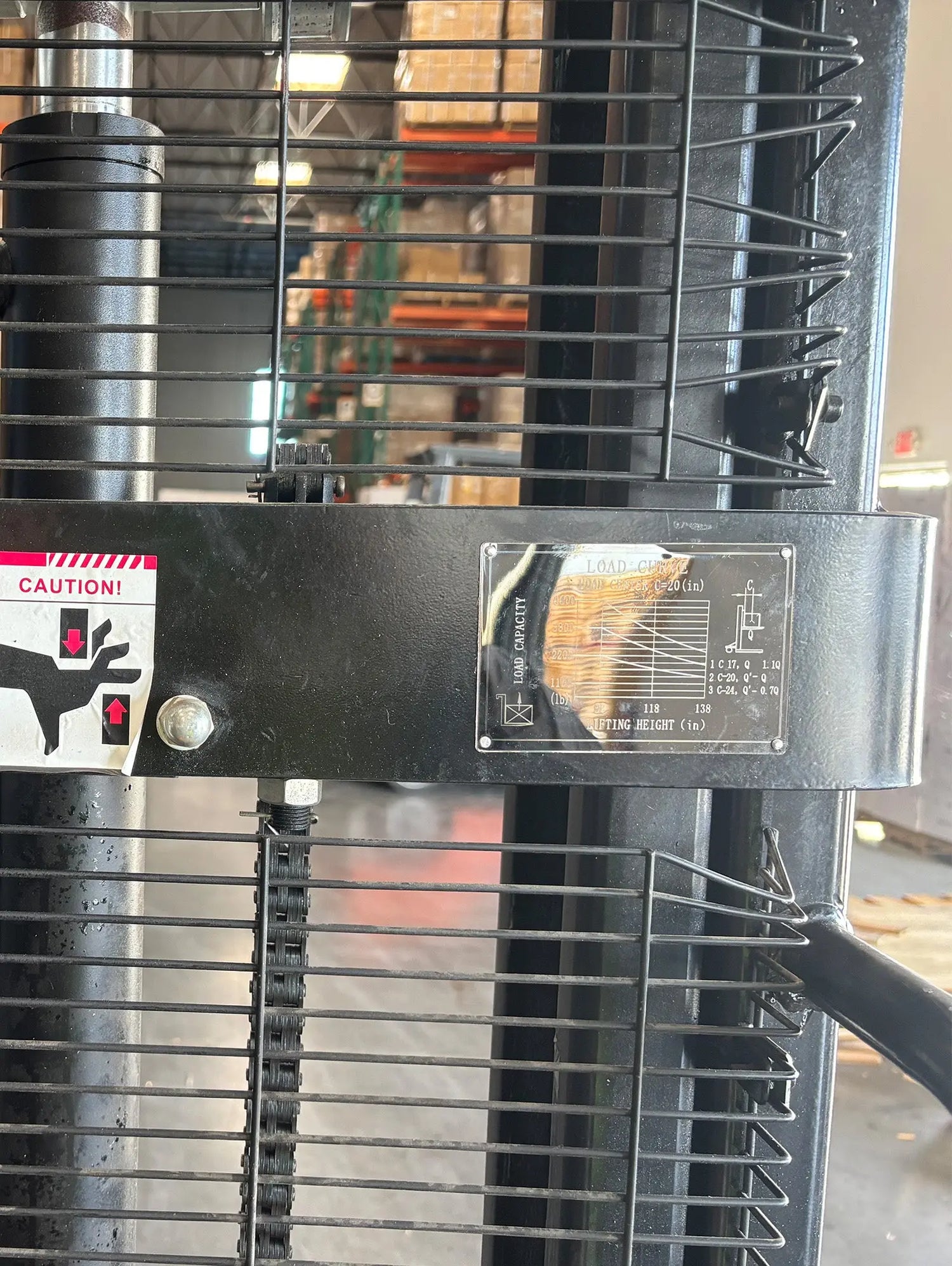

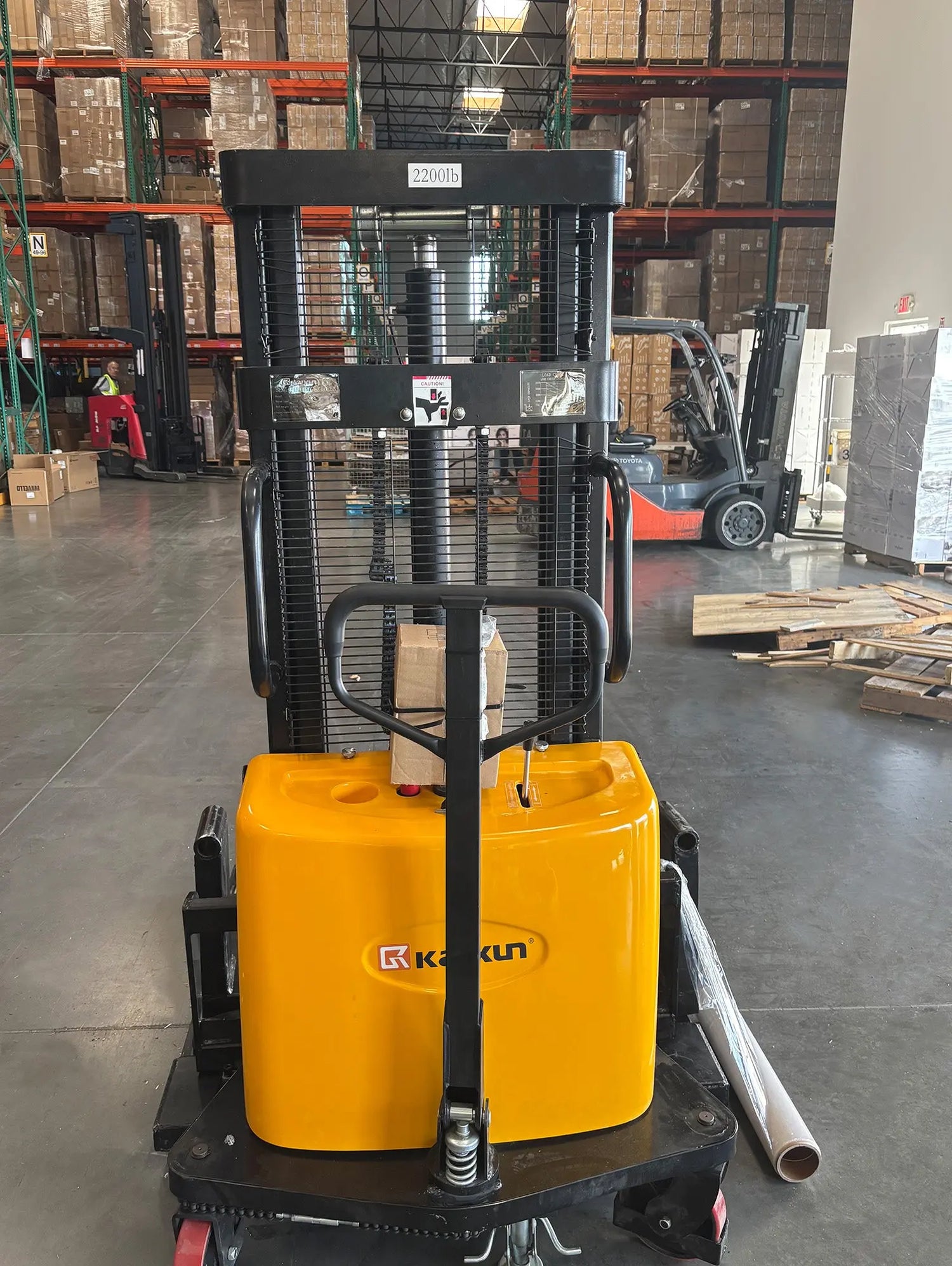

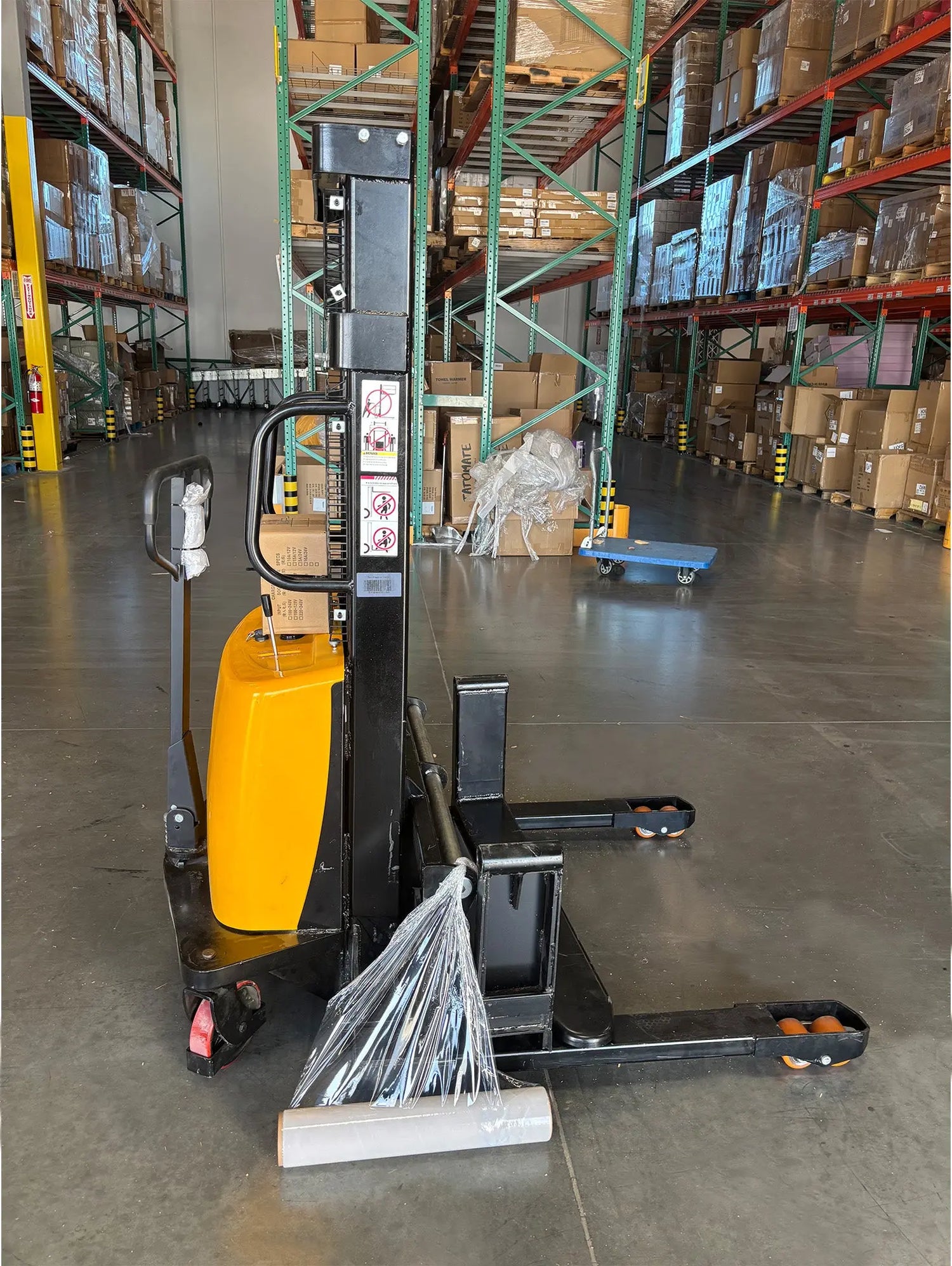

Used Semi-Electric Stacker 2200lbs Capacity, 98'' Lifting Height, Lightly Used Stacker KX-CTD10-98
Used Semi-Electric Stacker 2200lbs Capacity, 98'' Lifting Height, Lightly Used Stacker KX-CTD10-98 - Capacity 2200lbs lifting height 98'' está agotado y se enviará tan pronto como vuelva a estar disponible.
⚠️ Notice: Straddle legs self-installation required
No se ha podido cargar la disponibilidad de recogida
Pickup Available
30-Day Returns
1-Year Warranty
Request List
This unit is pre-owned and may show light signs of use or minor cosmetic wear, while remaining fully functional and performance-tested.
***
⚠️ NEED TO KNOW ⚠️
All used machine orders are Final Sale, with NO returns or refunds. However, they include a 3-month limited warranty covering parts only (labor not included).
By purchasing, you acknowledge and accept this policy.
***
Features:
- Operational Flexibility: Adjustable straddle feet accommodate varying pallet sizes
- Gel battery with 12V/100AH capacity and over charge design
- Up to 8 hours of service on a full charge, with a quick 6-8 hours recharge time(Fully charge battery before use to avoid damaging cells)
- 2200 lbs Load Capacity: Reinforced steel forks and an adjustable straddle system ensure stable handling of palletized goods
- Foot pedal brake for safety and ramp usage
- Emergency stop switch, electricity lock button, and multi-valve controlling levers for enhanced safety
- Adjustable regulator valve to control mast lowering speed for precise handling
Specification
| General | |||||
| Rated load | lbs | 2200 | N.W. | lbs | 1058 |
|---|---|---|---|---|---|
| Dimensions | |||||
| Overall length | in | 69 | Overall width | in | 45-61 |
| Overall height | in | 63/73/83 | Max. mast height | in | 101/120/140 |
| Turning radius | in | 57 | Wheel base | in | 47 |
| Forks | |||||
| Lifting height | in | 78/98/118 | Fork length | in | 42 |
| Fork adjustable width | in | 12-39 | |||
| Wheel | |||||
| Carrying wheel | in | φ3.1*2.8 | Driving wheel | in | φ7x2 |
| Motor | |||||
| Lift motor | KW | 1.6 | |||
| Battery & Charge | |||||
| Battery | V/Ah | 12/100 | |||
| Speed | |||||
| Lifting speed full-load | in/s | 4 |
Powerful Performance and Durability
A Semi-Electric Stacker like the KAIXUN KX-CTD10 is designed to handle heavy-duty tasks efficiently. With a capacity of 2200lbs and a lifting height of 98”, this stacker can move large loads easily. But what makes it stand out is its durability. Because it’s built with high-quality materials, you can trust it to last long in demanding environments.
User-Friendly Design for Easy Operation
The KAIXUN KX-CTD10 Semi-Electric Stacker is not only powerful but also user-friendly. Its intuitive controls make it easy for operators to navigate through tight spaces in warehouses. So even if your team has limited experience with material handling equipment, they’ll find this stacker simple to operate. And because safety is important, it comes with features that reduce the risk of accidents.
Suitable for Various Industries
Because of its versatility, the KAIXUN KX-CTD10 Semi-Electric Stacker works well in many industries. Whether you’re in retail, manufacturing, or logistics, this stacker will meet your needs. It helps streamline operations and increases productivity. So investing in one means saving time and money in the long run.
Video
| Características | ||
|---|---|---|
| Carga nominal | ||
| Carga nominal | - | - |
| Altura de elevación | ||
| Altura de elevación | - | - |
| Adjustable Width | ||
| Adjustable Width | ||
| Altura máxima del mástil | ||
| Altura máxima del mástil | - | - |
| noroeste | ||
| noroeste | - | - |
| Precio | ||
| Precio |
Precio de venta
$2,09930
Precio normal
$2,99900
Precio unitario
/
Agotado
|
Precio de venta
$2,23930
Precio normal
$3,19900
Precio unitario
/
Agotado
|
Preguntas frecuentes
Preguntas sobre la batería
¿Potencia del cargador?
¿Potencia del cargador?
- Ligero 1,6 toneladas: 300 W
- Totalmente eléctrico 2.0 toneladas: 800 W
¿Se puede utilizar un cargador con mayor corriente?
¿Se puede utilizar un cargador con mayor corriente?
- Ligero 1,6 toneladas: Sí, pero no se recomienda superar los 20 A (estándar: 24 V 10 A)
- Totalmente eléctrico de 2,0 toneladas: supera los 20 A (estándar: 24 V 10 A) Sí, pero no se recomienda superar los 40 A (estándar: 24 V 30 A)
¿Preguntas sobre aceite hidráulico?
¿Capacidad de aceite (tanque lleno)?
¿Capacidad de aceite (tanque lleno)?
- Peso ligero de 1,6 toneladas: 3 m de altura de elevación: 4 L (varía según la altura)
- Totalmente eléctrico 2.0 toneladas: 4,5 m: 4,5 L / 5,5 m: 7,5 L
¿Intervalo de cambio de aceite?
¿Intervalo de cambio de aceite?
Primer reemplazo después de 6 meses, luego anualmente.
¿Se puede observar directamente el nivel de aceite hidráulico?
¿Se puede observar directamente el nivel de aceite hidráulico?
No
Others
Do you offer used or refurbished equipments?
Do you offer used or refurbished equipments?
Unfortunately, we don't offer used or refurbished equipments at the moment.
What kind of warranty do you offer?
What kind of warranty do you offer?
We offer a 1-year limited warranty, with a 6-month warranty for the battery. For more details, please refer to our warranty policy.
What should I do if the product is damaged during shipping?
What should I do if the product is damaged during shipping?
We strongly recommend inspecting your products upon arrival. If there’s visible damage, please refuse delivery, take photos, note the issue on the delivery slip, and contact our support team: support@kaixunus.com immediately.
Do you offer bulk discounts if I purchase multiple forklifts?
Do you offer bulk discounts if I purchase multiple forklifts?
Yes, please send your required models, quantities, and shipping address to our email: support@kaixunus.com, and we’ll offer you the best pricing.
